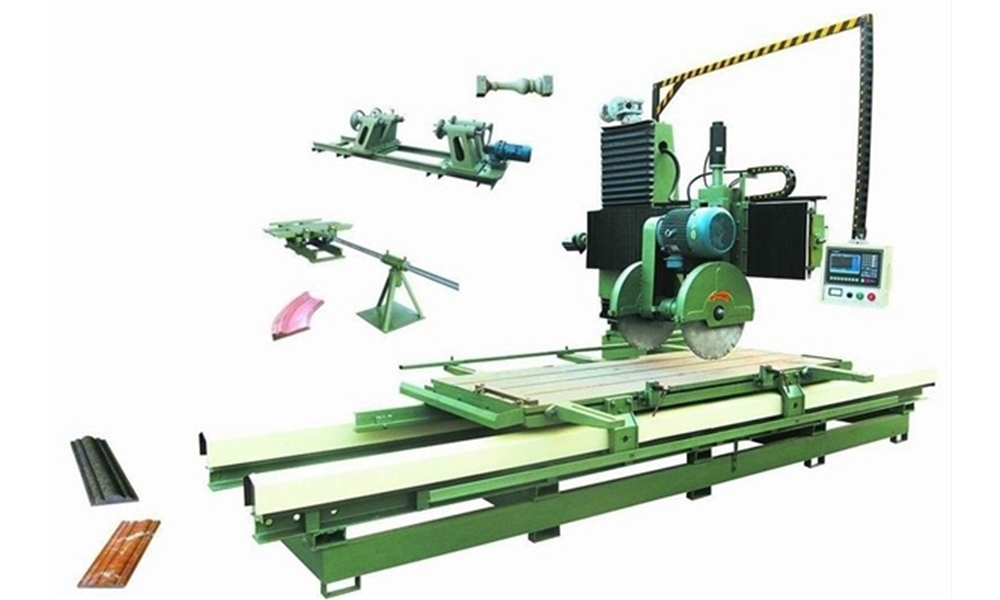

Name：DDQ1000cutting machine with computer

Details

The machine applies to cut and chamfer marble and granite panels, to cut and process hear stones, to mill cylinder stones, and to process curving panels.

The longest cutting panel	3000mm
Saw web diameter	Φ600mm
Lifting distance of saw web	800mm
The maximum diameter of cylinder	Φ500mm
Main motor power	5.5kw
Overall dimension((L×W×H)	5200×2640×2980mm
Gross weight	3200kg
