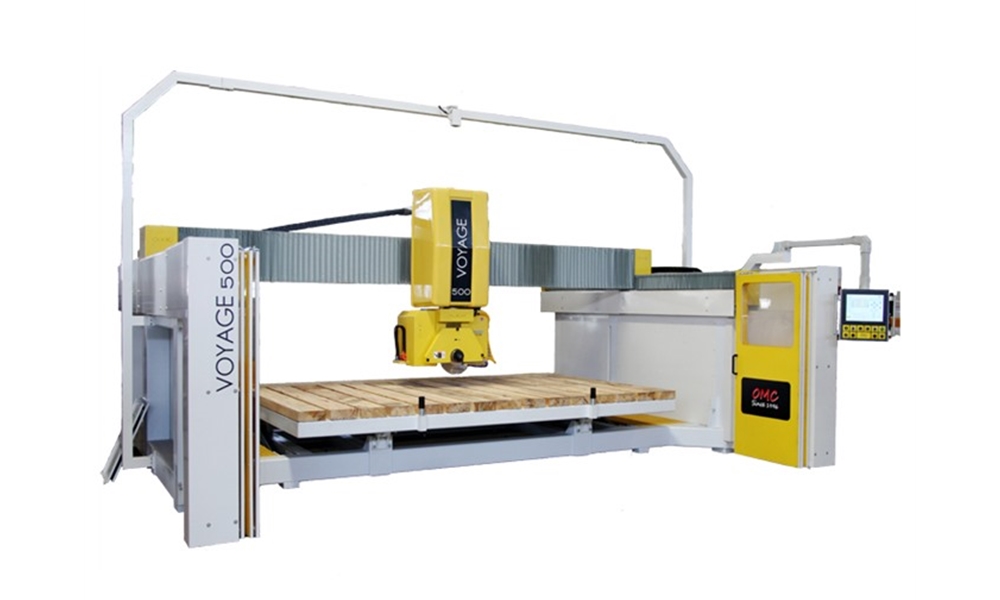

Yingke five-axis bridge cutting. Adopting advanced microcomputer control system, it can realize manual programming, PC programming and other programming methods, and automatically complete the processing work. Can be convenient for cutting, edge grinding, grooving, kitchen table processing, shaped processing and other occasions.
Product features
1. Photographing, typesetting and positioning, and automatic measurement of plate thickness and tool size.
2. Use good computer system control, simple operation, high efficiency.
3. Choose good quality electrical appliances with long service life and low maintenance cost
4. The native supports one-click transformation in multiple languages.
Product parameters and price
|
Programming method |
Manual programming |
|
Programming method 2 |
CAD The import |
|
Control method |
CNC |
|
Main motor power |
7.5kw |
|
Working voltage |
380V-3phase/50HZ |
|
Speed R.P.M |
1000-6000r/min |
|
Blade size |
350-400mm |
|
X-axis working stroke |
3500mm |
|
Y-axis working stroke |
2000mm |
|
A-axis working stroke |
360°Rotate freely |
|
B-axis working stroke |
0-90°Automatic chamfering |
|
Cutting thickness |
80mm |
|
Processing precision |
0.2mm |
|
Working table size |
3500*2000mm |
|
Tilting working table |
YES |
|
Camera |
YES |
|
Overall size |
5800*3120*3320mm |
|
Weight |
3900KG |
|
